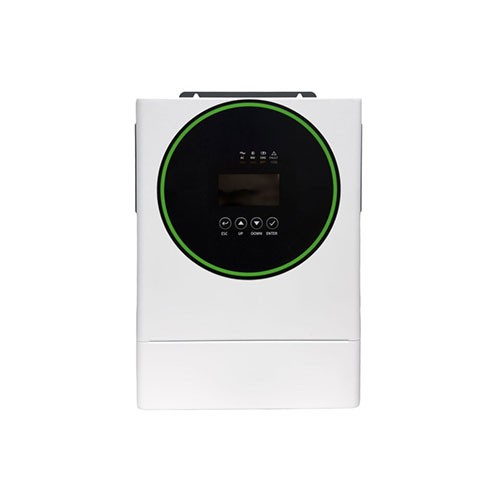

12KW-US standard hybrid solar inverter

12KW Split-Phase Hybrid Inverter — 3 MPPT · 48V Battery · 120/240V AC Output · Built-in WiFi

Product Description

Designed for high-power residential and light commercial solar-plus-storage applications, this 12KW Split-Phase Hybrid Inverter delivers pure sine wave AC output at 120V/240V (Split Phase) — the standard for North American homes. It features three independent MPPT trackers to optimize solar harvest from multiple roof orientations or panel arrays, and is engineered for 48V LiFePO₄ battery banks commonly used in modern energy storage systems.

The built-in WiFi module enables real-time monitoring and configuration via smartphone app, while RS485 and CAN ports ensure seamless communication with leading battery BMS and energy management systems. With fast UPS transfer (<10ms), high surge capacity, and programmable working modes (Grid-tie, Off-grid, Hybrid), it's the ideal heart of a whole-home backup or off-grid power solution.

Key Features

Typical Applications

• Whole-home backup for North American residences (with battery)




• Large off-grid homes / cabins (split-phase 120/240V required)




• Small commercial / farm with 240V 3-wire service




• Solar self-consumption + time-of-use (TOU) arbitrage with battery




Technical Summary (Typical Values — confirm per actual datasheet)

• Rated AC Power: 12000W




• Output Voltage: 120V/240V Split Phase (L1-N=120V, L1-L2=240V)




• Battery Voltage: 48V DC (recommended LiFePO₄)




• MPPT ×3: Max PV Power ~18KW, Vmppt 150-495V, Imax 22-28A each




• Max Charge/Discharge Current: 200A–250A (depending on model)




• Transfer Time: ≤10ms




• Monitoring: WiFi (built-in), RS485, CAN




• Protection: IP20 (indoor), overload/short/temp/anti-reverse
